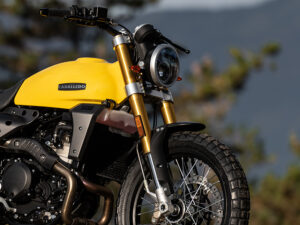

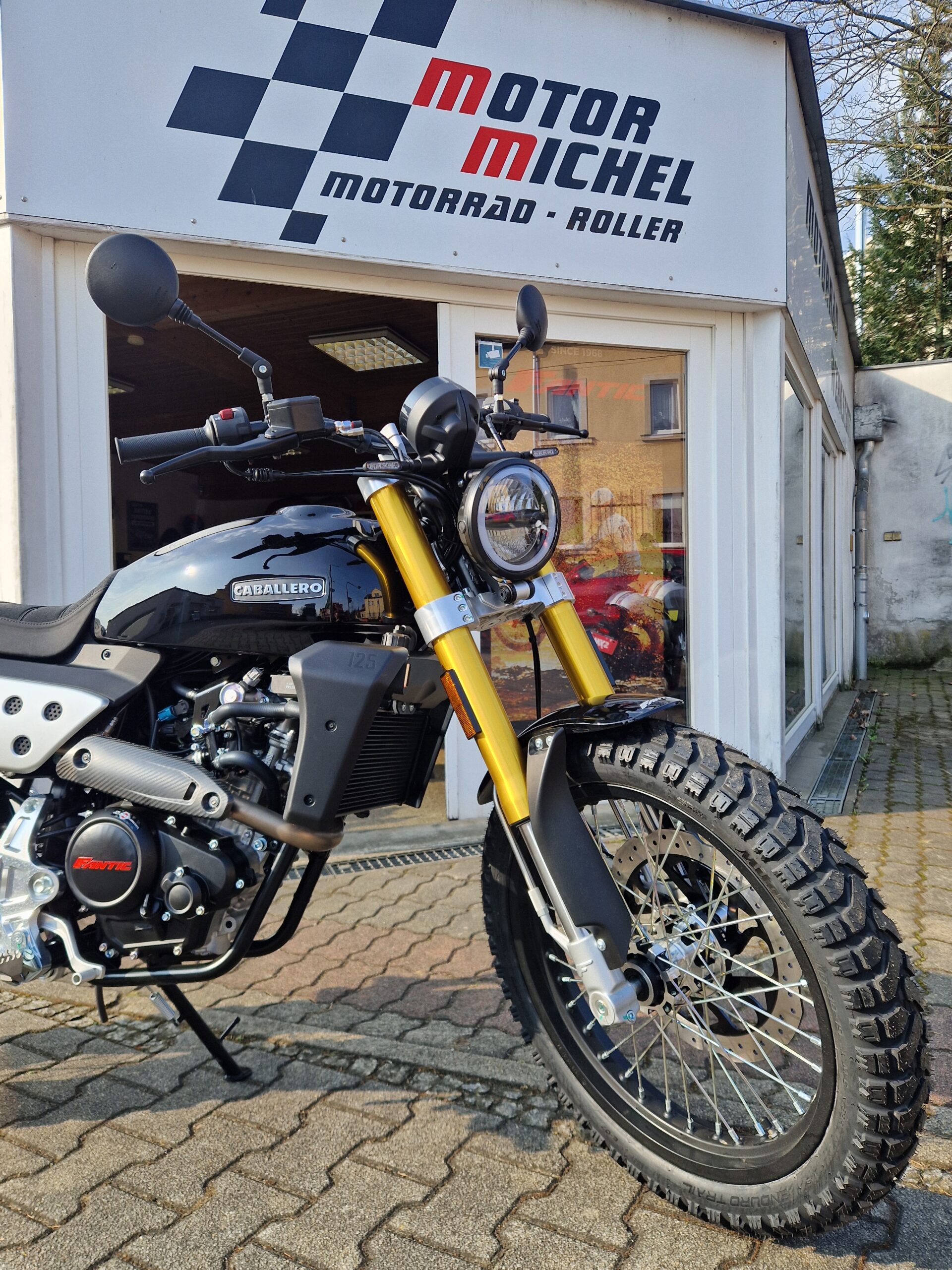

FANTIC CABALLERO

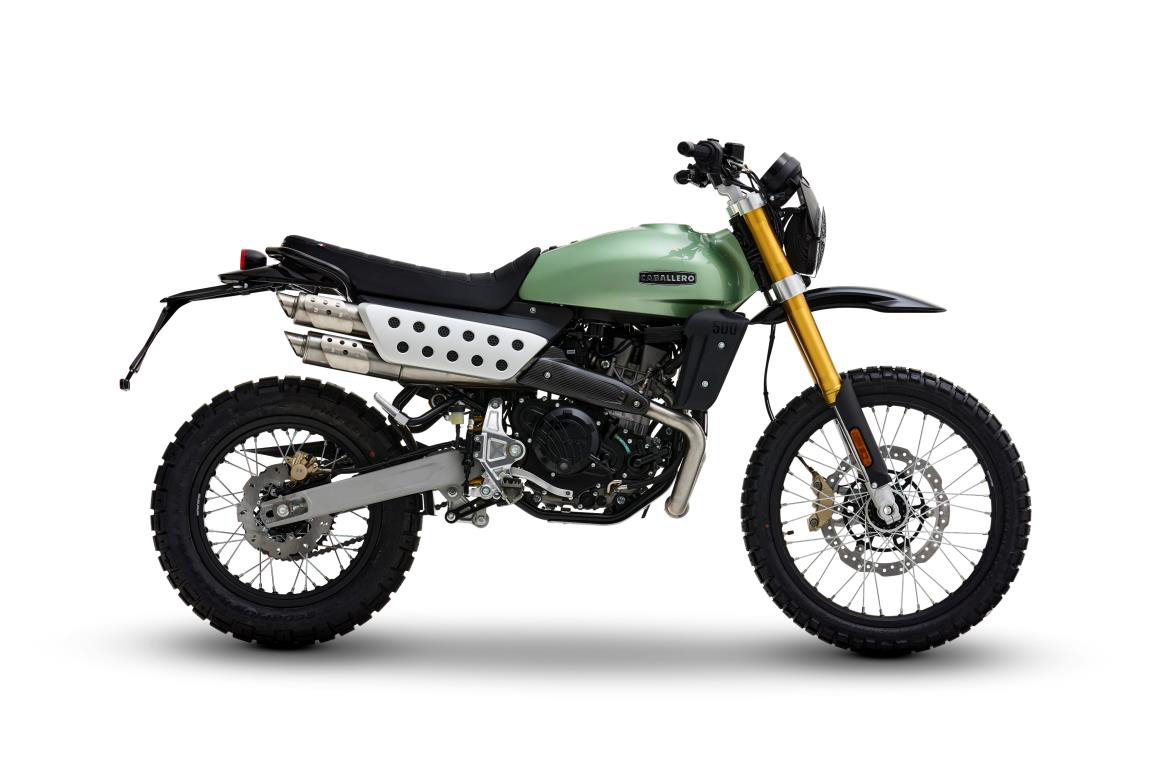

Easy and light on the road, agile and aggressive off-road, with the new Caballero Scrambler your fun knows no limits.

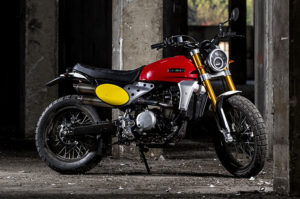

Scrambler 500

TECH SPECS

ENGINE: Single cylinder 4 stroke, liquid cooled
DISPLACEMENT: 449 cc
MAX POWER: 40 HP @ 7500 rpm
MAX TORQUE: 43 Nm @ 6000 rpm
BORE: 94.5 mm
STROKE: 64 mm
DISTRIBUTION: Single camshaft – 4 valve
IGNITION: Electronic Fuel injection by ATHENA GET – throttle body ø 40mm
STARTER: Electric
GEARS: 6
CLUTCH: Multi plate wet clutch
EXHAUST SYSTEM: Dual exhaust by ARROW
FRAME: CrMo steel central-tube frame
SWINGARM: In steel with variable section and progressive link
TIRES: 110/80 R19, 140/80 R17
WHEELS: Black aluminum
BRAKES: Front floating brake disc ø320mm – Rear brake disc ø230mm
ABS: Continental two-channel ABS (disengageable)
FRONT SUSPENSION: FANTIC FRS ø41mm upside down
FRONT SUSPENSION TRAVEL: 150mm
REAR SUSPENSION: FANTIC FRS, rebound damping regulation
REAR SUSPENSION TRAVEL: 150mm
SEAT HEIGHT: 820 mm – optional seat 840mm
WHEELBASE: 1425 mm
LENGTH: 2080 mm
DRY WEIGHT: 150 kg
FUEL TANK: 12 l

Scrambler 125

TECH SPECS

ENGINE: Single cylinder 4 stroke, liquid cooled
DISPLACEMENT: 124.45 cc
BORE: 52 mm
STROKE: 58.6 mm
DISTRIBUTION: Single camshaft – 4 valve
CARBURETOR: Keihin ø30
STARTER: Electric
GEARS: 6
CLUTCH: Multi plate wet clutch
EXHAUST SYSTEM: Dual exhaust by ARROW
FRAME: CrMo steel central-tube frame
SWINGARM: In steel with variable section and progressive link
TIRES: 110/80 R19, 130/80 R17
WHEELS: Black aluminum
BRAKES: Front brake disc ø320mm – Rear brake disc ø230mm
ABS: Continental two-channel ABS (disengageable)
FRONT SUSPENSION: FANTIC FRS ø41mm upside down
FRONT SUSPENSION TRAVEL: 150mm
REAR SUSPENSION: FANTIC FRS, rebound damping regulation
REAR SUSPENSION TRAVEL: 150mm
SEAT HEIGHT: 820 mm – optional seat 840mm
WHEELBASE: 1425 mm
LENGTH: 2080 mm
DRY WEIGHT: 130 kg
FUEL TANK: 12 l

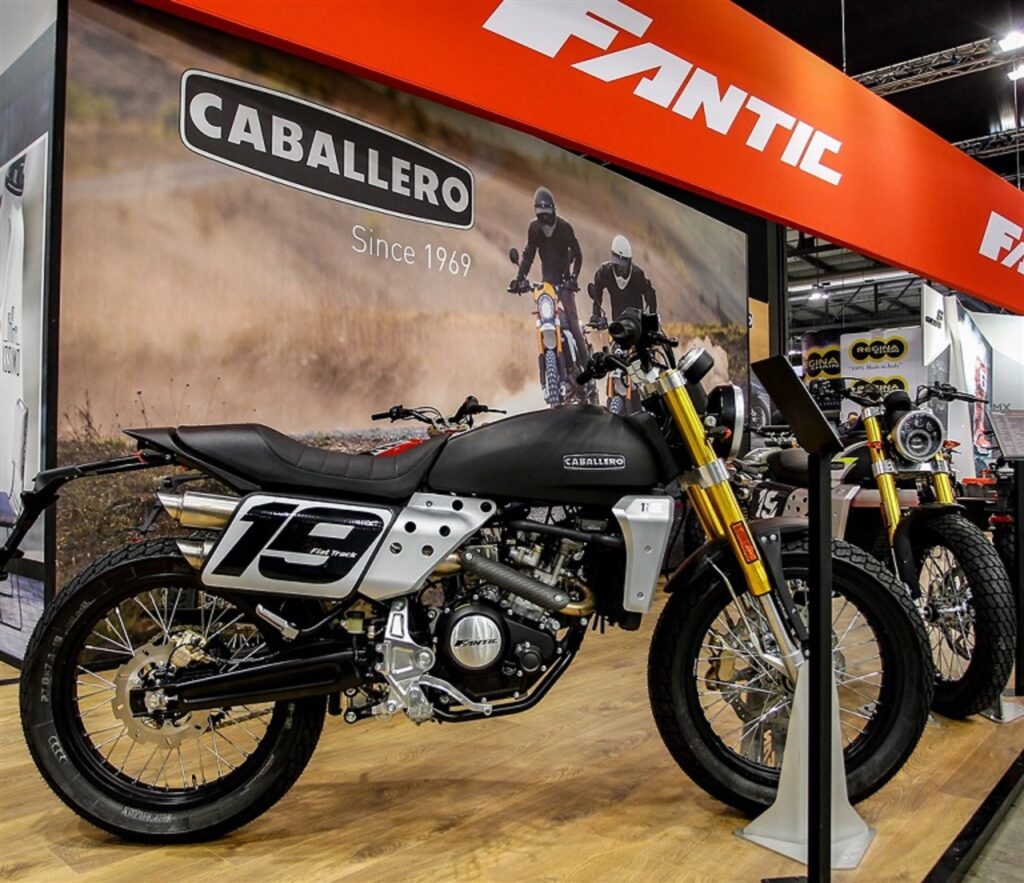

FlatTrack 500

TECH SPECS

ENGINE: Single cylinder 4 stroke, liquid cooled
DISPLACEMENT: 449 cc
MAX POWER: 40 HP @ 7500 rpm
MAX TORQUE: 43 Nm @ 6000 rpm
BORE: 94.5 mm
STROKE: 64 mm
DISTRIBUTION: Single camshaft – 4 valve
IGNITION: Electronic Fuel injection by ATHENA GET – throttle body ø 40mm
STARTER: Electric
GEARS: 6
CLUTCH: Multi plate wet clutch
EXHAUST SYSTEM: Dual exhaust by ARROW
FRAME: CrMo steel central-tube frame
SWINGARM: In steel with variable section and progressive link
TIRES: 130/80 – 19, 140/80 – 19
WHEELS: Black aluminum
BRAKES: Front floating brake disc ø320mm – Rear brake disc ø230mm
ABS: Continental two-channel ABS (disengageable)
FRONT SUSPENSION: FANTIC FRS ø41mm upside down
FRONT SUSPENSION TRAVEL: 150 mm
REAR SUSPENSION: FANTIC FRS, rebound damping regulation
REAR SUSPENSION TRAVEL: 150 mm
SEAT HEIGHT: 840 mm
WHEELBASE: 1425 mm
LENGTH: 2120 mm
DRY WEIGHT: 150 kg
FUEL TANK: 12 L

FlatTrack 250

TECH SPECS

ENGINE: Single cylinder 4 stroke, liquid cooled
DISPLACEMENT: 249.6 cc
MAX POWER: 25 HP @ 8500 rpm
MAX TORQUE: 22 Nm @ 6500 rpm
BORE: 77 mm
STROKE: 53.6 mm
DISTRIBUTION: Single camshaft – 4 valve
IGNITION: Electronic Fuel injection by ATHENA GET – throttle body ø 34mm
STARTER: Electric
GEARS: 6
CLUTCH: Multi plate wet clutch
EXHAUST SYSTEM: Dual exhaust by ARROW
FRAME: CrMo steel central-tube frame
SWINGARM: In steel with variable section and progressive link
TIRES: 130/80 – 19, 130/80 – 19
WHEELS: Black aluminum
BRAKES: Front brake disc ø320mm – Rear brake disc ø230mm
ABS: Continental two-channel ABS (disengageable)
FRONT SUSPENSION: FANTIC FRS ø41mm upside down
FRONT SUSPENSION TRAVEL: 150 mm
REAR SUSPENSION: FANTIC FRS, rebound damping regulation
REAR SUSPENSION TRAVEL: 150 mm
SEAT HEIGHT: 840mm
WHEELBASE: 1425 mm
LENGTH: 2120 mm
DRY WEIGHT: 140 kg
FUEL TANK: 12 L
http://www.fanticmotor.it/wp-content/uploads/2015/12/MOTARD1.png
http://www.fanticmotor.it/wp-content/uploads/2015/12/125-300x150.png

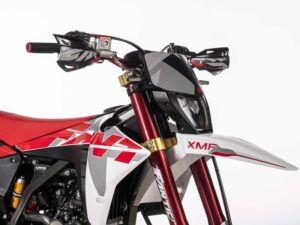

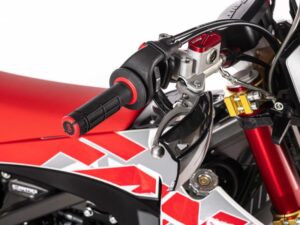

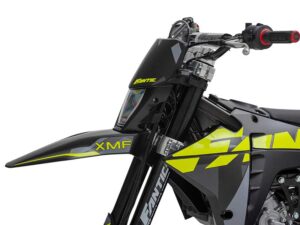

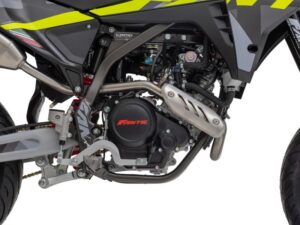

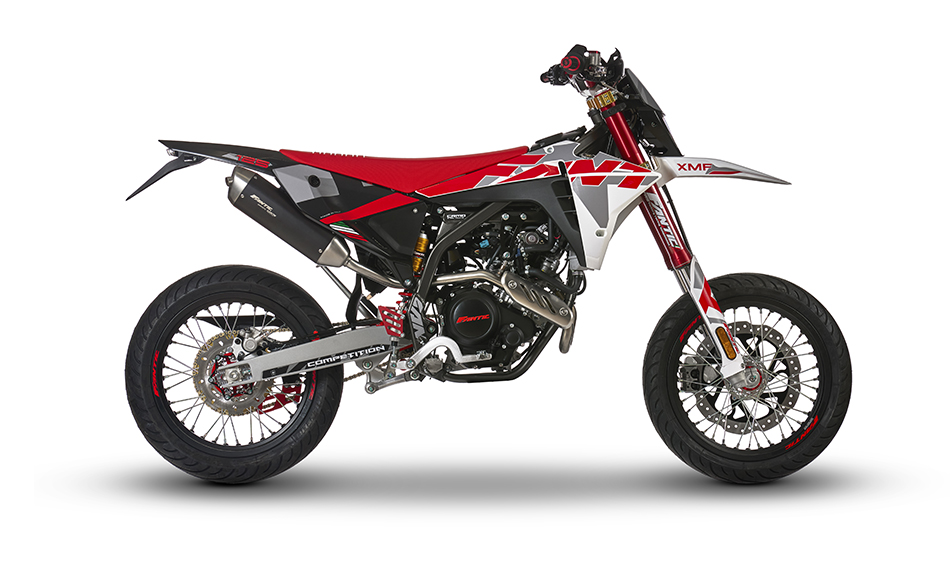

TECHNISCHE DATEN

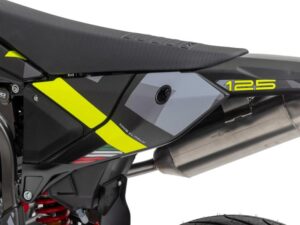

Motor : 1 Zylinder 4-Takt,flüssigkeitsgekühlt, Euro 4
Hubraum : 124,45 cc
Bohrung : 52,0mm
Hub : 58,6mm
Gemischsteuerung : 1 obenliegende Nockenwelle, 4 Ventile
Vergaser : Keihin ø30
Zündung : Digital
Starter : Elektrostarter
Getriebe : 6-Gang
Kupplung : Mehrscheibenölbad
Auspuff : Aluminium Schalldämpfer von Arrow, Euro 4
Rahmen : Perimeter CrMo-Stahlrohr
Rahmenheck : Stahlrohr, demontierbar
Schwinge : in Aluminium, progressiv angelenkt, mit variablem Querschnitt
Bereifung : 100/80×17 – 130/70×17
Felgen : Aluminium, Schwarz eloxiert
Bremsen :  “Wave”-Scheibe ø320mm –  “Wave” – Scheibe ø220mm
Gabelbrücken : in Aluminiumguss
Federung vorne : FANTIC FRS ø41mm USD Gabel
Federung hinten : FANTIC FRS 125 Federbein, 1-fach einstellbar
Lenker : ø28mm Aluminium ohne Mittelstrebe
Länge : 2040mm
Sitzhöhe : 880mm
Radstand : 1420mm
Gewicht : 96 kg
Tankinhalt : 7,5 l

http://www.fanticmotor.it/wp-content/uploads/2019/11/125-M-competition-crop-2-1024x1024.jpghttp://www.fanticmotor.it/wp-content/uploads/2019/11/125-M-competition-crop-4-1024x1024.jpg

http://www.fanticmotor.it/wp-content/uploads/2019/11/125-M-performance-crop-3-1024x1024.jpg
http://www.fanticmotor.it/wp-content/uploads/2015/12/ENDURO1.png
http://www.fanticmotor.it/wp-content/uploads/2015/12/125-300x150.png

TECHNISCHE DATEN

Motor : 1 Zylinder 4-Takt,flüssigkeitsgekühlt, Euro 4
Hubraum : 124,45 cc
Bohrung : 52,0mm
Hub : 58,6mm
Gemischsteuerung : 1 obenliegende Nockenwelle, 4 Ventile
Vergaser : Keihin ø30
Zündung : Digital
Starter : Elektrostarter
Getriebe : 6-Gang
Kupplung : Mehrscheibenölbad
Auspuff :  Aluminium Schalldämpfer von ARROW, Euro 4
Rahmen : Perimeter CrMo-Stahlrohr
Rahmenheck : Stahlrohr, demontierbar
Schwinge : in Aluminium, progressiv angelenkt, mit variablem Querschnitt
Bereifung : 90/90×21 – 120/80×18
Felgen : Aluminium, Schwarz eloxiert
Bremsen :  “Wave”-Scheibe ø260mm –  “Wave” – Scheibe ø220mm
Gabelbrücken : Aluminium, CNC gefräßt mit Dreifachklemmung
Federung vorne : FANTIC FRS ø41mm USD Gabel
Federung hinten : FANTIC FRS 125 Federbein, 1-fach einstellbar
Lenker : ø28mm Aluminium ohne Mittelstrebe
Länge : 2100mm
Sitzhöhe : 915mm
Radstand : 1420mm
Gewicht : 95 kg
Tankinhalt : 7,5 l



http://www.fanticmotor.it/wp-content/uploads/2019/11/250-E-bk-competition.jpg

http://www.fanticmotor.it/wp-content/uploads/2019/11/250-E-crop-2-1024x1024.jpghttp://www.fanticmotor.it/wp-content/uploads/2019/11/250-E-crop-3.jpg

TECHNISCHE DATEN

Motor : 1 Zylinder 4-Takt,Euro 4, flüssigkeitsgekühlt
Hubraum : 249,6 cc
Bohrung : 77,0mm
Hub : 53,6mm
Gemischsteuerung : 1 obenliegende Nockenwelle, 4 Ventile
Zündung : Digital
Starter : Elektrostarter
Getriebe : 6-Gang
Kupplung : Mehrscheibenölbad
Auspuff : ARROW Komplettanlage
Rahmen : Perimeter CrMo-Stahlrohr
Rahmenheck : Aluminium, demontierbar
Schwinge : in Aluminium, progressiv angelenkt, mit variablem Querschnitt
Bereifung : 90/90×21 – 120/80×18
Felgen : Aluminium, Schwarz eloxiert
Bremsen :  “Wave”-Scheibe ø260mm –  “Wave” – Scheibe ø220mm
Gabelbrücken : Aluminium CNC gefräßt
Federung vorne : FANTIC FRS ø43mm USD Gabel
Federung hinten : FANTIC FRS Federbein
Lenker : ø28mm Aluminium ohne Mittelstrebe
Länge : 2100mm
Sitzhöhe : 915mm
Radstand : 1420mm
Gewicht : 104 kg
Tankinhalt : 7,5 l



http://www.fanticmotor.it/wp-content/uploads/2015/12/MOTARD1.pnghttp://www.fanticmotor.it/wp-content/uploads/2015/12/50-300x150.png

FANTIC MOTARD 50 PERFORMANCE

TECHNISCHE DATEN

Motor : 1 Zylinder 2-Takt, Euro 4 flüssigkeitsgekühlt
Hubraum : 48,9 ccm
Bohrung : 40,3 mm
Hub : 39,0 mm
Vergaser : DellOrto ø16mm
Einlass : Membrane
Zündung : Elektronisch, Variabel
Starter : Kickstarter
Getriebe : 6 – Gang
Kupplung : Mehrscheibenölbad
Auspuff : anodisierter BigOne – Aluminium Schalldämpfer Euro 4
Rahmen : Perimeter CrMo-Stahlrohr
Rahmenheck : Stahlrohr, demontierbar
Schwinge : Stahlrohr, progressiv angelenkt
Bereifung : 100/80×17 – 130/70×17
Felgen : Aluminium, Schwarz eloxiert
Bremsen :  “Wave”-Scheibe ø260mm –  “Wave” – Scheibe ø220mm
Gabelbrücken : in Aluminiumguss
Federung vorne : FANTIC ø41mm USD Gabel
Federung hinten : FANTIC FRS 50 Federbein
Lenker : ø22mm Stahlrohr
Länge : 2040mm
Sitzhöhe : 870mm
Radstand : 1420mm
Gewicht : 85 kg
Tankinhalt : 7,5 l

http://www.fanticmotor.it/wp-content/uploads/2019/11/50-M-competition-crop-2-1.jpghttp://www.fanticmotor.it/wp-content/uploads/2019/11/50-M-competition-crop-1-1.jpg

http://www.fanticmotor.it/wp-content/uploads/2015/12/ENDURO1.pnghttp://www.fanticmotor.it/wp-content/uploads/2015/12/50-300x150.png

http://www.fanticmotor.it/wp-content/uploads/2019/11/50-E-w-performance-1.jpg

TECHNISCHE DATEN

Motor : 1 Zylinder 2-Takt, Euro 4, flüssigkeitsgekühlt
Hubraum : 48,9 ccm
Bohrung : 40,3 mm
Hub : 39,0 mm
Vergaser : DellOrto ø16mm
Einlass : Membrane
Zündung : Elektronisch, Variabel
Starter : Kickstarter
Getriebe : 6 – Gang
Kupplung : Mehrscheibenölbad
Auspuff : anodisierter BigOne – Aluminium Schalldämpfer Euro 4
Rahmen : Perimeter CrMo-Stahlrohr
Rahmenheck : Stahlrohr, demontierbar
Schwinge : Stahlrohr, progressiv angelenkt
Bereifung : 80/90×21 – 110/80×18
Felgen : Aluminium, Schwarz eloxiert
Bremsen :  “Wave”-Scheibe ø260mm –  “Wave” – Scheibe ø220mm
Gabelbrücken : in Aluminiumguss
Federung vorne : FANTIC ø41mm USD Gabel
Federung hinten : FANTIC FRS 50 Federbein
Lenker : ø22mm Stahlrohr
Länge : 2100mm
Sitzhöhe : 905mm
Radstand : 1420mm
Gewicht : 84 kg
Tankinhalt : 7,5 l
